With 360 degree control of fiber alignment to optimize material properties

FLUX 3D

FLUXPRINT 3D
3 Axes of magnetic fiber alignment
CKM
Mixing, heating, and recirculation of resin
DLP
Powerful DLP light engine
flux 3d spec image
flux 3d spec image
flux 3d spec image

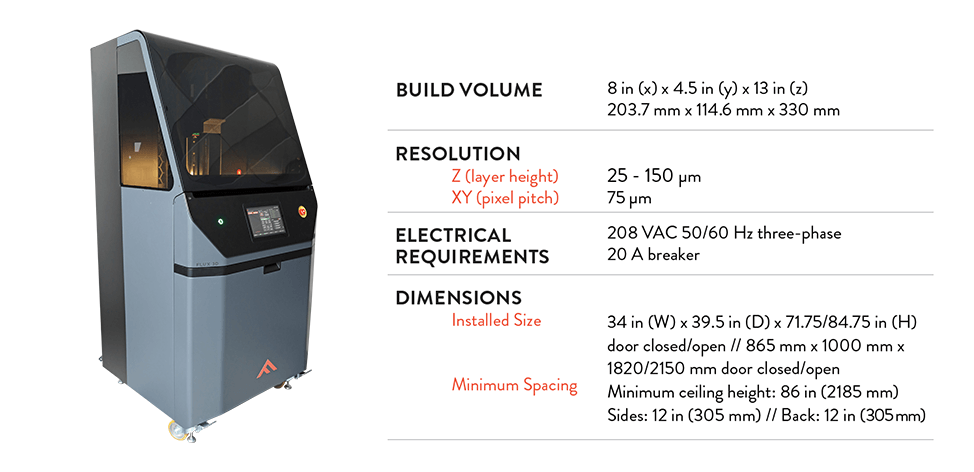

Printer Specs

3D Alignment enables users to control the pathways of magnetically responsive fibers to be patterned into complex parts for applications such as heat sinks, heat exchangers, RF shielding, enhanced electrical isolation, and high-performance industrial connectors among many others.

flux 3d spec image
flux 3d spec image
flux 3d spec image

Applications

The FLUX 3D combines CKM technology and a robust system architecture with the ability to selectively align fibers in any orientation throughout a build. Users can tune properties to allow for designed anisotropic properties in different regions of a part for applications such as directed thermal or electrical conductance or resistance.

flux 3d image 3
flux 3d image 3
flux 3d image 3

Material Development

If you have an application or material of interest that you think could benefit from 3D alignment, Fortify’s Flux Developer platform gives you the ability to push the limits of material properties for additive manufacturing applications through software and consulting services. Flux Developer is built for Fortify’s FLUX Series 3D printers, the only photopolymer DLP system that can print and process fiber-filled and highly viscous resins.

The Flux Developer platform accelerates the development of new, high-value materials and gives you the ability to:

  • Expand your processing window
  • Develop new material profiles
  • Conduct working curve tests

What Will You Fortify?

Visit our system page to learn more about the Fortify 3D printing platform
